Date:May 2001

A CUSTOMERS CHOICE OF PITCH AND STYLE AT A PRICE YOU CAN AFFORD

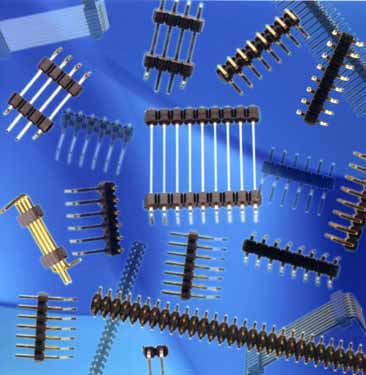

Nicomatic's new and extensive range of low-cost pin headers can be designed to meet every specification. Utilising the latest in flexible tooling techniques, Nicomatic are able to offer a diverse range of styles that can be customised to application specific requirements without the need for either tooling changes or high volume poduction runs.

Currently available in a variety of pitches (0.8mm, 1.00mm, 1.27mm, 2mm and 2.54mm among others), styles and shapes, in either thru hole or surface mount, the headers can be snapped or cut into any number of ways needed.

The headers can be supplied with tin-lead, gold flash or duplex plating options and single, double and where applicable, triple rows are available. The dimensions of each type of header can even be customised to individual specification.

Nicomatic's range of custom pin headers also offers the following features: -

- can be used in conjunction with top and bottom entry receptacles
- board retention features are available
- may eliminate the need for additional board spacers
- offers parallel PC board stacking with numerous stack heights



Housed in black thermoplastic 94V-0 rated or Nylon 6T (for the SMD Headers) - both high temperature compatible - the Pin Headers have an inserting force of 12lb (max) and a retention force of 25lb (min) with an electrical current rating of 3 amps.

Low in cost, Nicomatic can also quote a quick delivery time. For samples, details on pricing or for more information contact James Hevey on 01462 677886 or email james.hevey@nicomatic.co.uk
