Date: April 2001

USER FRIENDLY LIFE CYCLE TEST SYSTEM

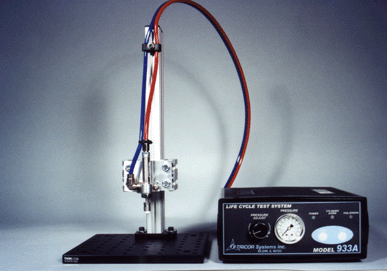

The Model 933A Life Cycle Test System is a low cost, generic test platform used to perform cycling of keypads, keyboards, membranes, switches, or any product requiring life and fatigue testing.

The 933A consist of a control box, air cylinder with test stand, and software installed by the user in a standard computer. It features a single analogue channel used to measure contact resistance and bounce (expandable to four), and an air cylinder with a silicone rubber tip to simulate activation of a finger. The air cylinder may be supplied in various throw lengths, diameters and even environmentally sealed while the control box allows for adjusting the velocity, force and acceleration of the cylinder.

The user-friendly Windows software environment allows the user to create test parameters for the unit under test (UUT), i.e. specified resistance, bounce time, number of cycles, allowed fails, cycles/second etc. The configuration is then transferred to the control box for stand-alone or PC based operation.

Testing of the UUT is as simple as operating to a predefined number of cycles. During cycling the 933A may test for: resistance, contact bounce, total number of fails and total consecutive fails and then compares test results to the user specified parameters. The system may stop testing if a specified number or consecutive number of failures of test parameters have occurred.



The 933A is a cost-effective, fast acting tool, which is easily operated and modified to test a variety of parameters and products.

If you would like to find out more contact Ian Ridpath at

Nicomatic (UK) Ltd
Unit 8,
Campus 5
Third Avenue
Letchworth
Hertfordshire
ENGLAND
SG6 2JF

Tel: +44 (0)1462 677886
Fax: +44 (0)1462 677499

Email ian.ridpath@nicomatic.co.uk
