1.27mm Pitch Connectors
HORIZONTAL RIGHT ANGLE, DOUBLE ROW SOCKET,
SURFACE MOUNT

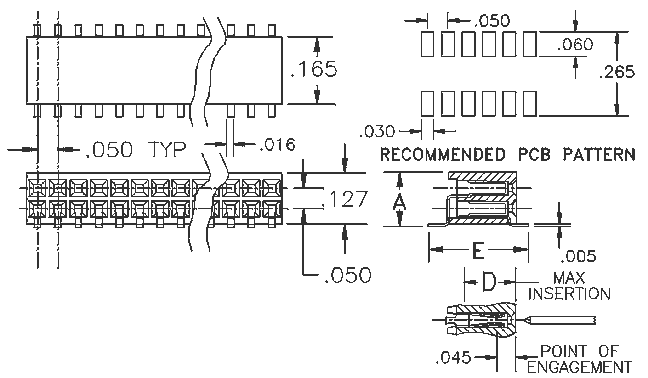

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
Max Insert Depth "D"
|
"E"
|
Plating
Option YY |
Number
of Positions XX |
|||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1484-XXYY |
3.23
|
.127
|
3.68
|
.145
|
6.22
|
.245
|
G2
|
4-120
|
| Technical Characteristics | |
| Contact Material | Stamped, BeCu |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 36g (1.3oz) w/.016" sq pin, 65g (2.3oz) w/.018" rd pin (typ initial/contact) |
| Insertion Force | 29g (1.0oz) w/.016" sq pin, 57g (2.0oz) w/.018" rd pin (typ initial/contact) |
| Plating | G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
