1.27mm Pitch Connectors
.016" SQUARE PIN, DOUBLE ROW STRAIGHT HEADER

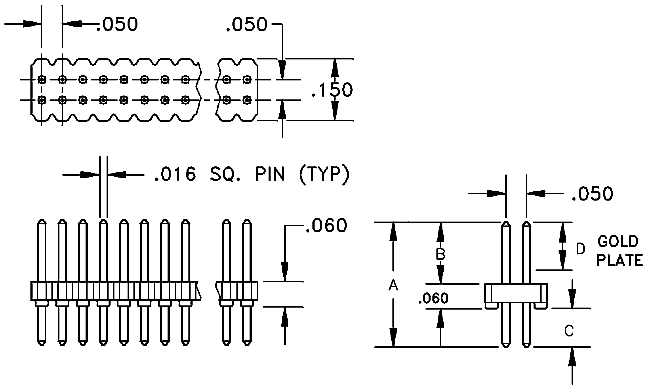

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N3914-XXYY |
6.36
|
.250
|
2.54
|
.100
|
2.29
|
.090
|
3.30
|
.130
|
T; G2
|
4-120
|
| N3910-XXYY |
7.60
|
.300
|
3.30
|
.130
|
2.80
|
.110
|
3.30
|
.130
|
T; G2
|
4-120
|
| N3911-XXYY |
7.60
|
.300
|
3.68
|
.145
|
2.40
|
.095
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3912-XXYY |
8.90
|
.350
|
4.70
|
.185
|
2.67
|
.105
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3913-XXYY |
10.17
|
.400
|
5.85
|
.230
|
2.80
|
.110
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3918-XXYY |
11.05
|
.435
|
6.73
|
.265
|
2.80
|
.110
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3915-XXYY |
13.59
|
.535
|
8.50
|
.365
|
2.80
|
.110
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3916-XXYY |
16.13
|
.635
|
11.81
|
.465
|
2.80
|
.110
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3917-XXYY |
18.67
|
.735
|
14.35
|
.565
|
2.80
|
.110
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3919-XXYY |
21.21
|
.835
|
3.68
|
.145
|
16.00
|
.630
|
3.68
|
.145
|
T; G2
|
4-120
|
| N3920-XXYY |
23.75
|
.935
|
3.68
|
.145
|
18.54
|
.730
|
3.68
|
.145
|
T; G2
|
4-120
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.16" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
