1.27mm Pitch Connectors
.016" SQUARE PIN, BOARD STACKING,
SINGLE ROW STRAIGHT - SURFACE MOUNT HEADER

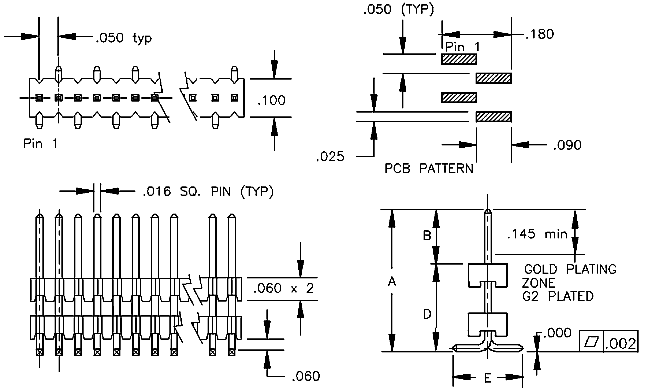

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"E"
|
"D"
|
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N5SMD1-140/225/180-XXYY |
9.27
|
.365
|
3.56
|
.140
|
4.57
|
.180
|
5.72
|
.225
|
G2; T
|
4-20
|
| N5SMD1-140/325/180-XXYY |
11.81
|
.465
|
3.56
|
.140
|
4.57
|
.180
|
8.26
|
.325
|
G2; T
|
4-20
|
| N5SMD1-140/425/180-XXYY |
14.35
|
.565
|
3.56
|
.140
|
4.57
|
.180
|
10.80
|
.425
|
G2; T
|
4-20
|
| N5SMD1-140/525/180-XXYY |
16.89
|
.665
|
3.56
|
.140
|
4.57
|
.180
|
13.34
|
.525
|
G2; T
|
4-20
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.16" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
