1.27mm Pitch Connectors
.016" SQUARE PIN, DOUBLE ROW STRAIGHT
SURFACE MOUNT HEADER

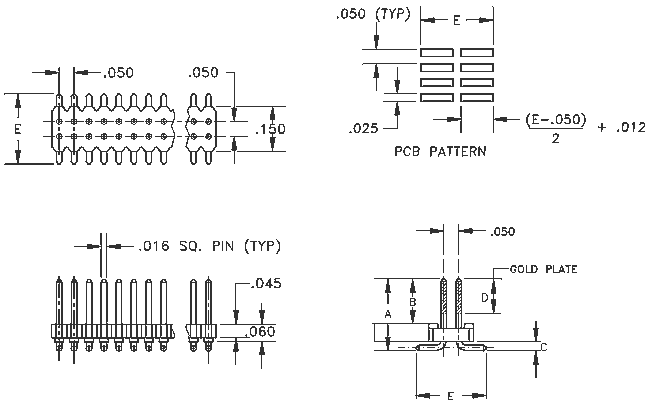

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| NSM3910-XXYY |
7.87
|
.310
|
5.84
|
.230
|
3.56
|
.140
|
6.60
|
.260
|
G2; T
|
4-40
|
| NSM3911-XXYY |
7.50
|
.295
|
5.46
|
.215
|
3.56
|
.140
|
4.57
|
.180
|
G2; T
|
4-40
|
| NSM3912-XXYY |
5.33
|
.210
|
3.30
|
.130
|
3.17
|
.125
|
4.19
|
.165
|
G2; T
|
4-40
|
| NSM3913-XXYY |
5.08
|
.200
|
3.43
|
.120
|
3.17
|
.125
|
4.83
|
.190
|
G2; T
|
4-40
|
| NSM3914-XXYY |
5.84
|
.230
|
3.81
|
.150
|
3.56
|
.140
|
10.67
|
.420
|
G2; T
|
4-40
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.16" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
