2.0mm Pitch Connectors
.020" ROUND PIN, LOW PROFILE, SINGLE -DOUBLE - TRIPLE ROW STRAIGHT, SCREW MACHINE SOCKET

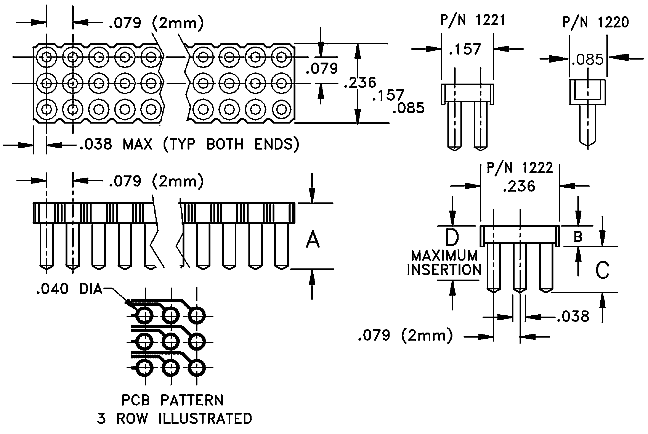

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1220-XXYY (1 Row) |
4.06
|
.160
|
1.52
|
.060
|
2.54
|
.100
|
2.29
|
.140
|
G2; T
|
2-30
|
| N1221-XXYY (2 Row) |
4.06
|
.160
|
1.52
|
.060
|
2.54
|
.100
|
2.29
|
.140
|
G2; T
|
4-60
|
| N1222-XXYY (3 Row) |
4.06
|
.160
|
1.52
|
.060
|
2.54
|
.100
|
2.29
|
.140
|
G2; T
|
6-90
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 3 finger BeCu [#21] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | Consult factory [#21] |
| Extraction Force | Consult factory [#21] |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
