2.0mm Pitch Connectors
DOUBLE ROW STRAIGHT, using SCREW MACHINE CONTACTS

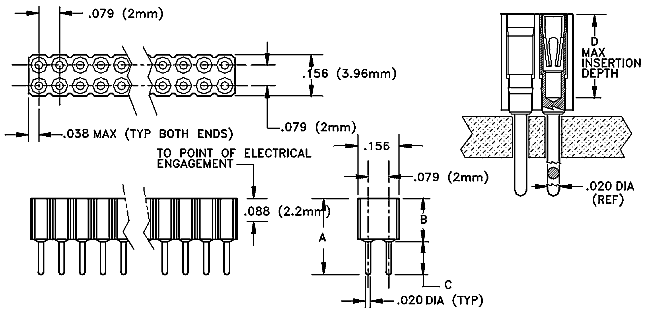

Package Outline Drawing
Characteristics
| Part Number |
Pin
|
Insertion Force (Typical)
|
Extraction Force (Typical)
|
| N1250 |
.020" Square
|
7.0oz (220grams)
|
4.9oz (139grams)
|
| N1250 |
.020" Round
|
5.5oz (157grams)
|
3.3oz (93grams)
|
| N1252 |
.020" Square
|
2.6oz (73grams)
|
1.8oz (51grams)
|
| N1252 |
.020" Round
|
1.8oz (52grams)
|
1.1oz (32grams)
|
| N1253 |
.020" Square
|
7.8oz (220grams)
|
4.9oz (139grams)
|
| N1253 |
.020" Round
|
5.5oz (157grams)
|
3.30z (93grams)
|
| N1254 |
.020" Square
|
8.6oz (244grams)
|
5.4oz (152grams)
|
| N1254 |
.020" Round
|
5.7oz (161grams)
|
3.6oz (102grams)
|
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1250-XXYY |
7.37
|
.290
|
4.19
|
.165
|
3.18
|
.125
|
3.81
|
.150
|
G2;T
|
4
|
| N1252-XXYY |
5.72
|
.225
|
4.19
|
.165
|
1.52
|
.060
|
3.81
|
.150
|
G2;T
|
4
|
| N1253-XXYY |
9.02
|
.355
|
4.44
|
.175
|
4.57
|
.180
|
3.81
|
.150
|
G2;T
|
4
|
| N1254-XXYY |
13.08
|
.515
|
4.44
|
.175
|
8.71
|
.343
|
3.81
|
.150
|
G2;T
|
4
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#32,43,Di-172] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | See bottom of drawing above |
| Extraction Force | See bottom of drawing above |
| Plating | G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni |
| T = Tin - 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni | |
