2.0mm Pitch Connectors
DOUBLE ROW STRAIGHT, PRESS FIT SOCKET

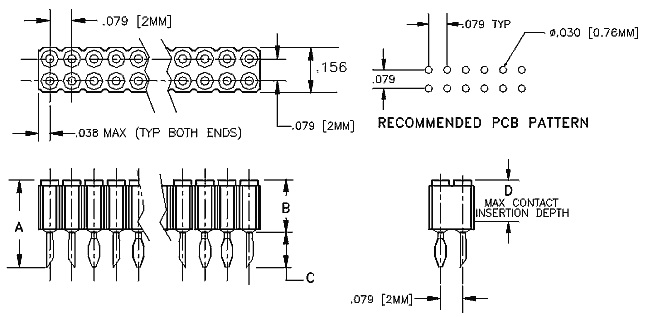

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1250C-XXYY |
8.00
|
.315
|
4.57
|
.180
|
3.43
|
.135
|
3.81
|
.150
|
G1
|
4-80
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: BeCu spring |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | Consult factory |
| Extraction Force | Consult factory |
| Plating | G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni |
