2.0mm Pitch Connectors
DOUBLE ROW STRAIGHT, EXTENDER - using Screw Machine Contacts

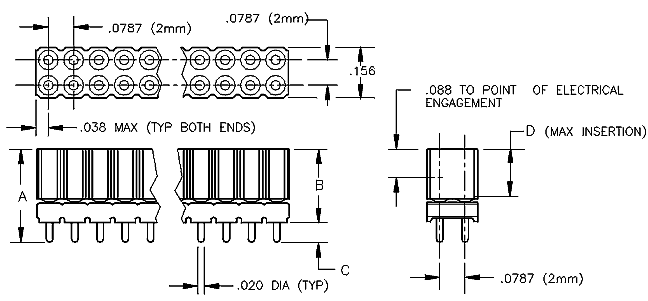

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1255-XXYY |
9.14
|
.360
|
6.22
|
.245
|
2.92
|
.115
|
3.81
|
.150
|
G2; T
|
4-50
|
| N1256-XXYY |
13.08
|
.515
|
8.84
|
.350
|
4.19
|
.165
|
3.81
|
.150
|
G2; T
|
4-50
|
| N1257-XXYY |
13.08
|
.515
|
10.54
|
.415
|
2.54
|
.100
|
3.81
|
.150
|
G2; T
|
4-50
|
| N1259-XXYY |
11.68
|
.460
|
9.35
|
.368
|
2.34
|
.092
|
5.08
|
.200
|
G2
|
4-50
|
| N1260-XXYY |
21.34
|
.840
|
9.35
|
.368
|
11.99
|
.472
|
5.08
|
.200
|
G1
|
4-50
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#43] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | typ initial per: 160 grams (5.6oz) w/.020" rd pin & 209 grams (7.4oz) w/.020sq pin [#32] |
| Extraction Force | typ initial per: 97 grams (3.4oz) w/.020" rd pin & 116 grams (4.1oz) w/.020sq pin [#32] |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G1 = Gold - 10µ"(.25µ) gold over 50µ" (1.3µ) Ni | |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
