2.0mm Pitch Connectors
SINGLE ROW RIGHT ANGLE - using Screw Machine Contacts

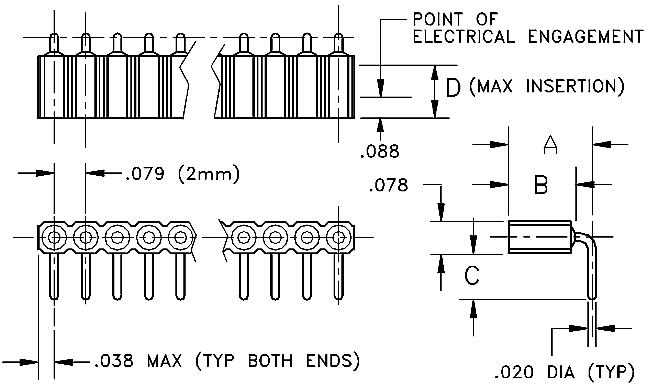

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max
Insert Depth "D" |
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1270R-XXYY |
5.72
|
.225
|
4.44
|
.175
|
2.79
|
.110
|
3.81
|
.150
|
G2; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#43] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | typ initial: 52 grams (1.8oz) w/.020" rd pin & 73 grams (2.6oz) w/.020sq pin [#43] |
| Extraction Force | typ initial: 32 grams (1.1oz) w/.020" rd pin & 51 grams (1.8oz) w/.020sq pin [#43] |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
