2.0mm Pitch Connectors
.800 BOARD CENTRELINE - 6 ROW END of STACK HEADER

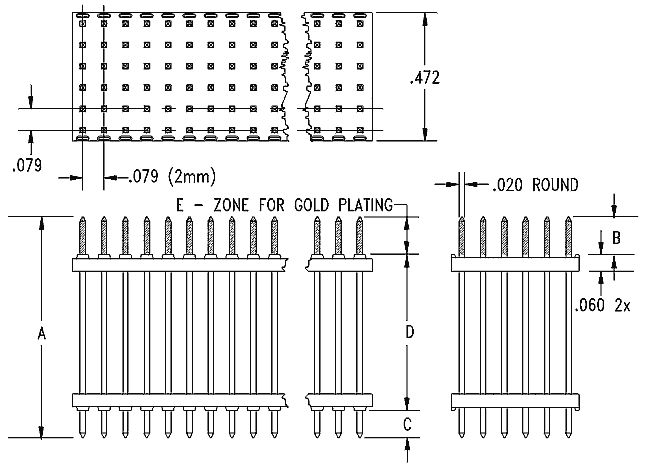

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Option YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1295-XXYY |
20.70
|
.815
|
3.56
|
.140
|
2.54
|
.100
|
14.61
|
.575
|
3.56
|
.140
|
G2
|
48-150
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.20" round |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
