2.0mm Pitch Connectors
SINGLE ROW STRAIGHT SOCKET

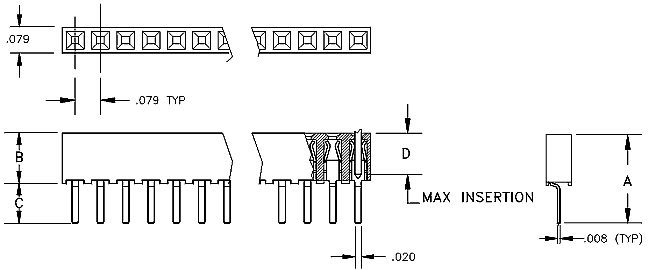

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max
Insert Depth "D" |
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1306-XXYY |
7.04
|
.277
|
4.00
|
.157
|
3.05
|
.120
|
3.68
|
.145
|
G1; G2
|
2-50
|
| Technical Characteristics | |
| Contact Material | contact: Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 142 grams (5.0oz) (typ initial w/.020" sq pin) |
| Extraction Force | 80 grams (2.8oz) (typ initial w/.020" sq pin) |
| Plating | G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni |
|
G2 = Tin/Gold - 10µ" (.25µ) gold over 50µ"
(1.3µ) Ni at |
|
