2.0mm Pitch Connectors
SINGLE ROW RIGHT ANGLE SURFACE MOUNT SOCKET

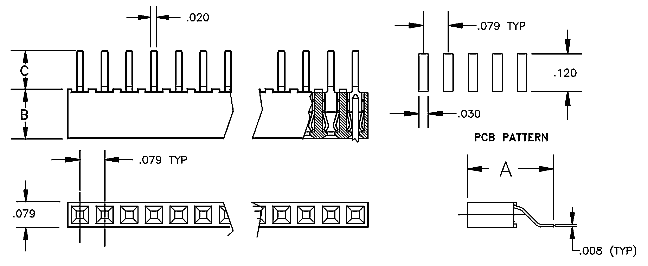

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Plating
Option YY |
Number
of Positions XX |
|||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1307-XXYY |
6.96
|
.274
|
4.00
|
.157
|
3.05
|
.120
|
G2; T
|
2-50
|
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 142 grams (5.0oz) (typ initial w/.020" sq pin) |
| Extraction Force | 80 grams (2.8oz) (typ initial w/.020sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
