2.0mm Pitch Connectors
DOUBLE ROW STRAIGHT SOCKET

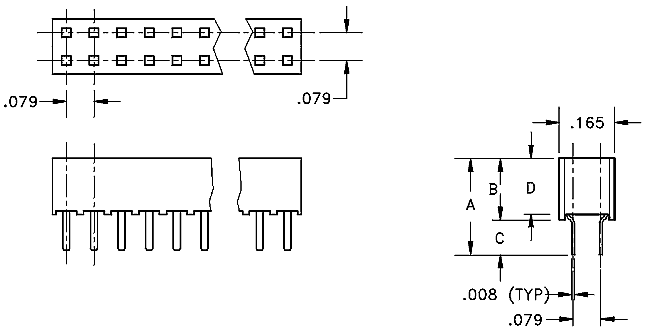

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max
Insert Depth "D" |
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1319-XXYY |
7.04
|
.277
|
4.00
|
.157
|
3.05
|
.120
|
3.68
|
.145
|
T1; G2
|
4-100
|
| N1320-XXYY |
6.54
|
.257
|
4.00
|
.157
|
2.54
|
.100
|
3.68
|
.145
|
T1; G2
|
4-100
|
| N1321-XXYY |
5.13
|
.202
|
4.00
|
.157
|
1.14
|
.045
|
3.68
|
.145
|
T1; G2
|
4-100
|
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 142 grams (5.0oz) (typ initial w/.020" sq pin) |
| Extraction Force | 80 grams (2.8oz) (typ initial w/.020sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
