2.0mm Pitch Connectors
BOTTOM ENTRY, DOUBLE ROW, STRAIGHT SMD SOCKET

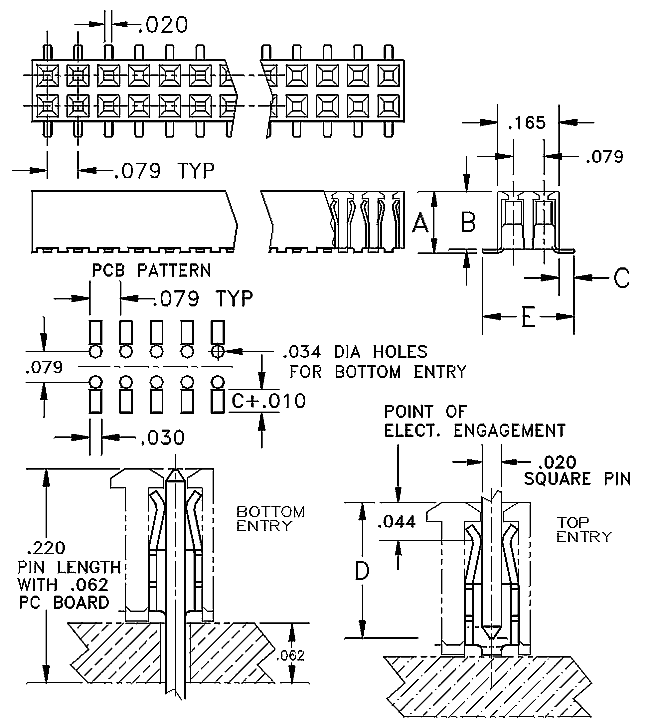

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Min Insert
Depth "D" |
"E"
|
Plating
Option YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1352-XXYY |
4.11
|
.162
|
3.99
|
.157
|
1.02
|
.040
|
3.43
|
.135
|
6.22
|
.245
|
G2; T
|
4-100
|
| N1353-XXYY | 4.11 | .162 | 3.99 | .157 | 1.02 | .040 | 3.43 | .135 | 6.22 | .245 | G2; T | 4-100 |
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 142 grams (5.0oz) (typ initial w/.020" sq pin) |
| Extraction Force | 80 grams (2.8oz) (typ initial w/.020sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
