2.0mm Pitch Connectors
SINGLE ROW RIGHT ANGLE, SCREW MACHINE SMD SOCKET

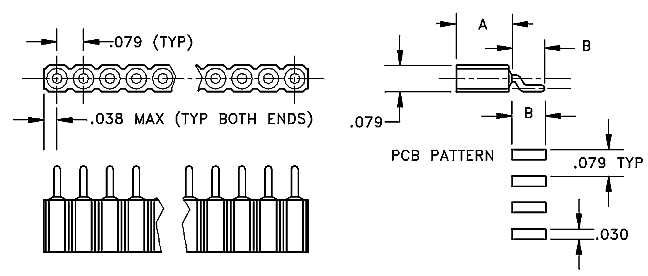

Package Outline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
Plating
Options YY |
Number
of positions XX |
||
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1355-XXYY |
4.19
|
.165
|
2.54
|
.115
|
T; G2
|
2-10
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#43] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | typ initial: 52 grams (1.8oz) w/.020" rd pin & 73 grams (2.6oz) w/.020sq pin [#43] |
| Extraction Force | typ initial: 32 grams (1.1oz) w/.020" rd pin & 51 grams (1.8oz) w/.020sq pin [#43] |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
