2.0mm Pitch Connectors
.020" SQUARE PIN, SINGLE ROW, RIGHT ANGLE HEADER

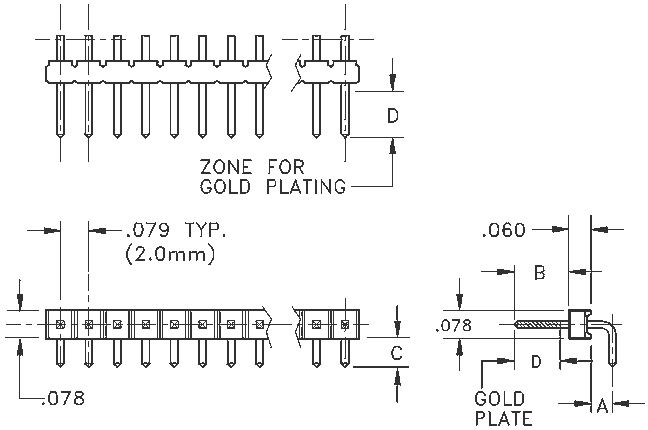

Package Outline Drawing
Characteristics
| Part Number |
Bend Distance from Plastic
"A" |
Above
"B" |
Below
"C" |
Gold on G2
"D" |
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N2301R-XXYY |
1.52
|
.060
|
3.55
|
.140
|
3.05
|
.120
|
3.55
|
.140
|
G2; T
|
2-50
|
| N2302R-XXYY |
1.52
|
.060
|
4.00
|
.157
|
2.79
|
.110
|
3.55
|
.140
|
G2; T
|
2-50
|
| N2303R-XXYY |
1.52
|
.060
|
4.00
|
.157
|
2.03
|
.080
|
3.55
|
.140
|
G2; T
|
2-50
|
| N2304R-XXYY |
1.52
|
.060
|
3.55
|
.140
|
2.54
|
.100
|
3.55
|
.140
|
G2; T
|
2-50
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
