2.0mm Pitch Connectors
.020" SQUARE PIN, SINGLE ROW, STRAIGHT HEADER

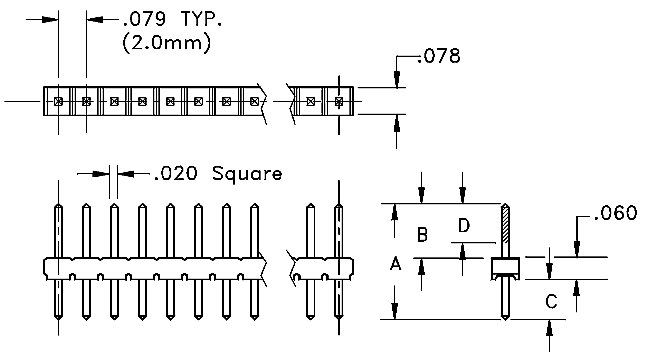

Package Outline Drawing
Characteristics
| Part Number |
Overall
"A" |
Above
"B" |
Below
"C" |
Gold on G2
"D" |
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N2800S-XXYY |
3.81
|
.150
|
1.15
|
.045
|
1.15
|
.045
|
N/A
|
N/A
|
T
|
2-50
|
| N2812S-XXYY |
5.72
|
.225
|
2.67
|
.105
|
1.55
|
.060
|
2.67
|
.105
|
G2; T
|
2-50
|
| N2813S-XXYY |
6.62
|
.260
|
3.18
|
.125
|
1.90
|
.075
|
3.18
|
.125
|
G2; T
|
2-50
|
| N2802S-XXYY |
8.13
|
.320
|
3.55
|
.140
|
3.06
|
.120
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2803S-XXYY |
8.50
|
.335
|
4.00
|
.157
|
3.02
|
.118
|
4.00
|
.157
|
G2; T
|
2-50
|
| N2810S-XXYY |
9.02
|
.355
|
4.46
|
.175
|
3.06
|
.120
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2804S-XXYY |
9.79
|
.385
|
5.73
|
.225
|
2.54
|
.100
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2814S-XXYY |
11.81
|
.465
|
3.81
|
.150
|
6.48
|
.255
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2805S-XXYY |
13.85
|
.545
|
9.79
|
.385
|
2.54
|
.100
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2806S-XXYY |
10.43
|
.410
|
6.35
|
.250
|
2.54
|
.100
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2807S-XXYY |
14.49
|
.570
|
10.19
|
.400
|
2.80
|
.110
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2808S-XXYY |
16.50
|
.650
|
12.21
|
.480
|
2.80
|
.110
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2809S-XXYY |
18.54
|
.730
|
14.23
|
.560
|
2.80
|
.110
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2815S-XXYY |
25.15
|
.990
|
3.55
|
.140
|
20.07
|
.790
|
3.58
|
.140
|
G2; T
|
2-50
|
| N2816S-XXYY |
29.11
|
1.146
|
3.55
|
.140
|
24.03
|
.946
|
3.58
|
.140
|
G2: T
|
2-50
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
