2.0mm Pitch Connectors
.020" ROUND PIN, LOW PROFILE, SINGLE - DOUBLE - TRIPLE ROW STRAIGHT HEADER

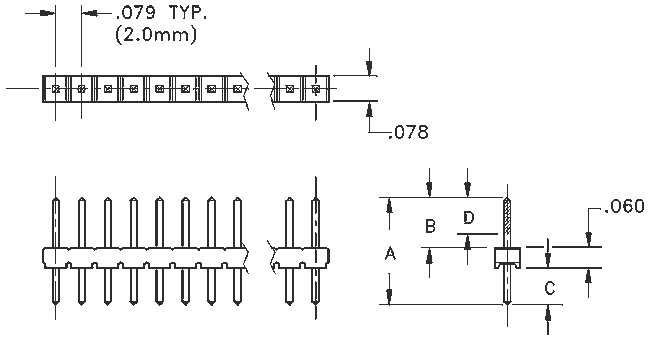

PackageOutline Drawing
Characteristics
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N2870MS-XXYY (1 Row) |
8.13
|
3.20
|
3.55
|
.140
|
3.05
|
.120
|
3.55
|
.140
|
G2; T
|
2-30
|
| N2871MS-XXYY (2 Row) |
8.13
|
3.20
|
3.55
|
.140
|
3.05
|
.120
|
3.55
|
.140
|
G2; T
|
4-60
|
| N2872MS-XXYY (3 Row) |
8.13
|
3.20
|
3.55
|
.140
|
3.05
|
.120
|
3.55
|
.140
|
G2; T
|
6-90
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, .020" round, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
