2.0mm Pitch Connectors
.020" SQUARE PIN, BOARD STACKING, DOUBLE ROW STRAIGHT SMD HEADER

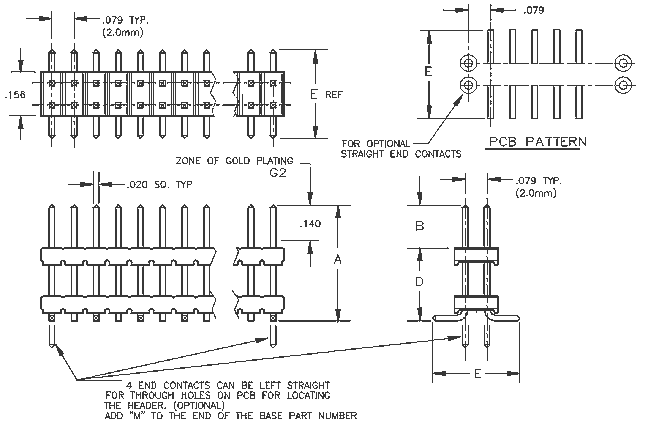

Package Outline Drawing
To add 2 straight thru hole end contacts, add "M"
to the end of the Part Number.
Example: 2SMD1-140/175/180-XXYYM
Characteristics
| Part Number |
"A"
|
"B"
|
"D"
|
"E"
|
Plating
Option YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N2SMD2-140/175/180-XXYY |
8.00
|
.315
|
3.56
|
.140
|
4.44
|
.175
|
6.60
|
.260
|
G2; G230; T
|
4-20
|
| N2SMD2-140/335/180-XXYY |
12.07
|
.475
|
3.56
|
.140
|
8.50
|
.335
|
6.60
|
.260
|
G2; G230; T
|
4-20
|
| N2SMD2-140/440/180-XXYY |
14.93
|
.580
|
3.56
|
.140
|
11.1
|
.440
|
6.60
|
.260
|
G2; G230; T
|
4-20
|
| N2SMD2-140/520/180-XXYY |
16.76
|
.660
|
3.56
|
.140
|
13.2
|
.520
|
6.60
|
.260
|
G2; G230; T
|
4-20
|
| N2SMD2-140/860/180-XXYY |
15.12
|
.920
|
3.56
|
.140
|
21.8
|
.780
|
6.60
|
.260
|
G2; G230; T
|
4-20
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
|
G230 - Tin/30µ"Gold - 30µ" (.76µ) Gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
