2.0mm Pitch Connectors

.020" SQUARE PIN, SADDLE MOUNT, DOUBLE ROW STRAIGHT SMD HEADER

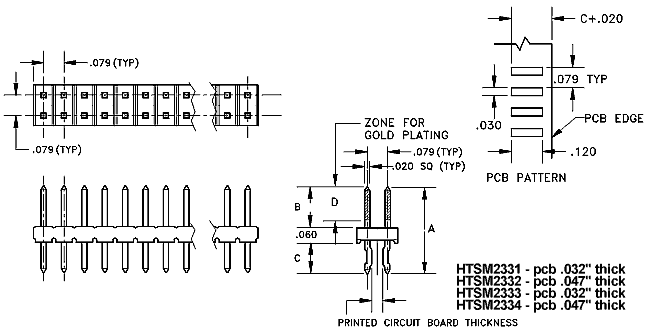

Package Outline Drawing

Characteristics

Part Number PCB
Thickness 		Overall
"A" 		Above
"B" 		Below
"C" 		Gold on G2 "D" Plating
Option
YY 		Number
of
Positions
XX
mm Inch mm Inch mm Inch mm Inch mm Inch
NHTSM2331-XXYY .83 .032 8.00 .315 3.56 .140 2.93 .115 3.56 .140 T; G2 4-80
NHTSM2331-XXYY 1.19 .047 8.00 .315 3.56 .140 2.93 .115 3.56 .140 T; G2 4-80
NHTSM2331-XXYY .83 .032 8.43 .332 4.00 .140 2.93 .115 3.56 .140 T; G2 4-80
NHTSM2331-XXYY 1.19 .047 8.43 .332 4.00 .140 2.93 .115 3.56 .140 T; G2 4-80

Technical Characteristics
Contact Material Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends
Insulation Material Glass Filled Nylon 46, UL94V-O rated black
Heat Deflection 260° @ 264 PSI per ASTM D648
Insulation Resistance 5,000 Meg Ohm @ 500VDC
Current Rating

2 amp continuous @ 100VDC/contact
Max Processing Temp 250°C for 60 seconds
Plating T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni
G2 = Tin/Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni
