2.0mm Pitch Connectors
.020" SQUARE PIN, SINGLE ROW - STRAIGHT SMD HEADER

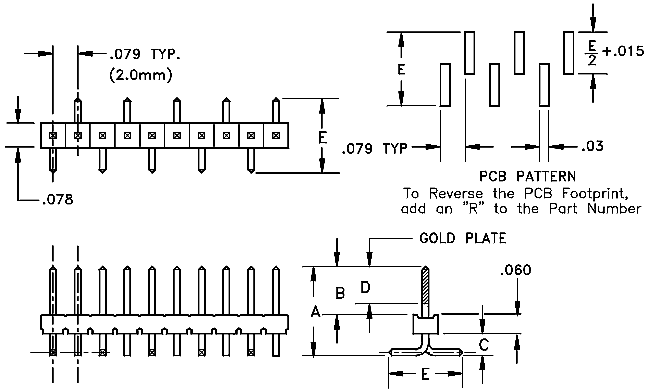

Package Outline Drawing
For hold down thru-hole pins at each end, add "M"
at end of Base Part Number.
Example: NHTSM 2802M-XXYY
NOTE: To reverse the foot pattern, add an "R"
to the Base Part Numbert
Example: NHTSM 2802R-XXYY
Characteristics
| Part Number |
Overall
"A" |
Above
"B" |
"C"
|
Gold on G2
"D" |
"E"
|
Plating
Option YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| NHTSM2802-XXYY |
6.86
|
.270
|
3.56
|
.140
|
.10
|
.004
|
3.56
|
.140
|
5.97
|
.235
|
T; G2
|
2-15
|
| NHTSM2803-XXYY |
7.23
|
.287
|
4.00
|
.157
|
.10
|
.004
|
3.56
|
.140
|
5.59
|
.220
|
T; G2
|
2-15
|
| NHTSM2804-XXYY |
5.84
|
.230
|
3.68
|
.145
|
.10
|
.004
|
3.56
|
.140
|
5.84
|
.230
|
T; G2
|
2-15
|
| NHTSM2805-XXYY |
6.15
|
.242
|
4.00
|
.157
|
.10
|
.004
|
3.56
|
.140
|
5.33
|
.210
|
T; G2
|
2-15
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
