2.0mm Pitch Connectors
.020" SQUARE PIN, BOARD STACKING, DOUBLE STRAIGHT HEADER

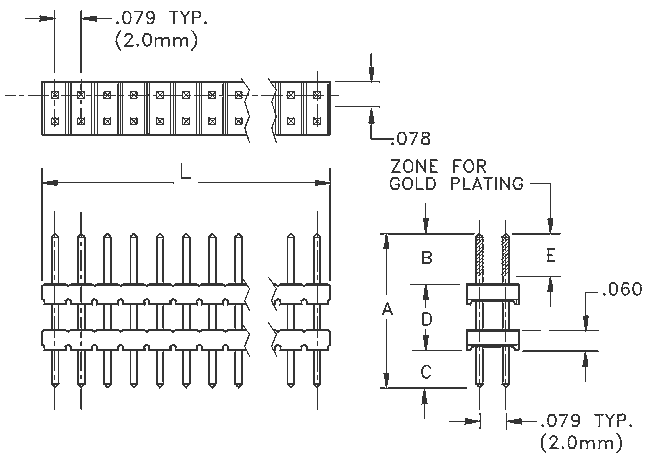

Package Outline Drawing
Characteristics
| Part Number |
Dimensions
|
G2 Duplex
plating available 1 end only |
Plating
Options YY |
Number
of Positions XX |
||||||||
|
"A"
|
"B"
|
"C"
|
"D"
|
|||||||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| NMD2-140/120/075-XXYY |
8.50
|
.335
|
3.58
|
.140
|
1.91
|
.075
|
3.05
|
.120
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/120/125-XXYY |
9.79
|
.385
|
3.58
|
.140
|
3.17
|
.125
|
3.05
|
.120
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/160/110-XXYY |
10.41
|
.410
|
3.58
|
.140
|
2.80
|
.110
|
4.06
|
.160
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/295/110-XXYY |
13.85
|
.545
|
3.58
|
.140
|
2.80
|
.110
|
7.49
|
.295
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/320/110-XXYY |
14.48
|
.570
|
3.58
|
.140
|
2.80
|
.110
|
8.13
|
.320
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/400/110-XXYY |
16.50
|
.650
|
3.58
|
.140
|
2.80
|
.110
|
10.16
|
.400
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/480/110-XXYY |
18.54
|
.730
|
3.58
|
.140
|
2.80
|
.110
|
12.22
|
.480
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/120/100-XXYY |
8.13
|
.320
|
2.54
|
.100
|
2.54
|
.100
|
3.05
|
.120
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/135/100-XXYY |
8.50
|
.335
|
2.54
|
.100
|
2.54
|
.100
|
3.44
|
.135
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/210/100-XXYY |
10.41
|
.410
|
2.54
|
.100
|
2.54
|
.100
|
5.34
|
.210
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/370/100-XXYY |
14.48
|
.570
|
2.54
|
.100
|
2.54
|
.100
|
9.40
|
.370
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/450/100-XXYY |
16.50
|
.650
|
2.54
|
.100
|
2.54
|
.100
|
11.43
|
.450
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-100/530/100-XXYY |
18.54
|
.730
|
2.54
|
.100
|
2.54
|
.100
|
13.46
|
.530
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/750/100-XXYY |
25.15
|
.990
|
3.58
|
.140
|
2.54
|
.100
|
19.05
|
.750
|
3.58
|
.140
|
G2; T
|
4-100
|
| NMD2-140/906/100-XXYY |
29.11
|
1.146
|
3.58
|
.140
|
2.54
|
.100
|
23.01
|
.906
|
3.58
|
.140
|
G2; T
|
4-100
|
| Technical Characteristics | |
| Contact Material | Phosphor Bronze, 0.20" sq, drawn wire, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating |
2 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold
over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
