2.54mm Pitch Connectors
DOUBLE ROW HORIZONTAL RIGHT ANGLE, accepting .025" SQUARE PIN, SOCKET

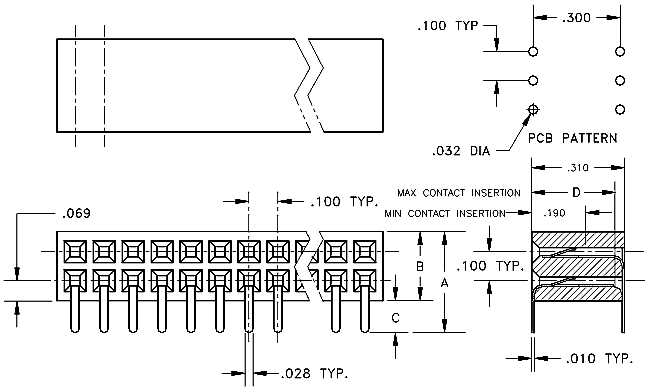

Package Outline Drawing
Technical Information
Contact; 4 sided box type
Insertion/Extraction forces mated .025 sq pin
Insertion - 185 grams per contact typical
Extraction - 102 grams per contact typical
Recommended Male Pin: .230 min .250 max
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1132-XXYY |
8.51
|
.335
|
5.46
|
.215
|
3.05
|
.120
|
7.37
|
.290
|
G230; T
|
4-130
|
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze, single beam |
| Insulation Material | Glass Filled Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force | 185 grams (6.3oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 102 grams (3.6oz) (typ initial force per contact w/.025" sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ)bright tin over 50µ" (1.3µ) Ni | |
