2.54mm Pitch Connectors
BOTTOM ENTRY, 1 ROW STRAIGHT, accepting .025" SQUARE PIN, SOCKET

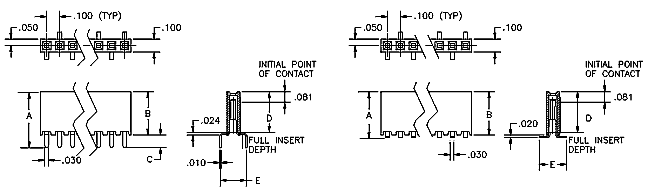

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1135-XXYY |
10.95
|
.431
|
8.51
|
.335
|
2.44
|
.096
|
7.62
|
.300
|
5.08
|
.200
|
G2; T
|
2-40
|
| N1137-XXYY |
9.02
|
.355
|
8.51
|
.335
|
7.62
|
.300
|
5.08
|
.200
|
G2; T
|
2-40
|
||
| Technical Characteristics | |
| Contact Material | Contact: 2 finger Stamped, Phosphor Bronze |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 150°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ)bright tin over 50µ" (1.3µ) Ni | |
