2.54mm Pitch Connectors
SINGLE ROW STRAIGHT, LOW PROFILE, accepting .025" SQUARE PIN SOCKET

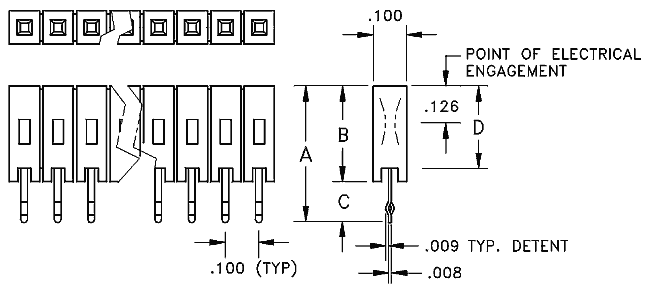

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1140-XXYY |
10.16
|
.400
|
6.99
|
.275
|
3.18
|
.125
|
6.35
|
.250
|
T
|
2
|
| Technical Characteristics | |
| Contact Material | Contact: 3 Sided Stamped, Phosphor Bronze |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 150°C for 60 seconds |
| Insertion Force | 306 grams (10.8oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 153 grams (5.4oz) (typ initial force per contact w/.025" sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
