2.54mm Pitch Connectors
DOUBLE ROW STRAIGHT, LOW PROFILE, accepting .025" SQUARE PIN, SMD SOCKET

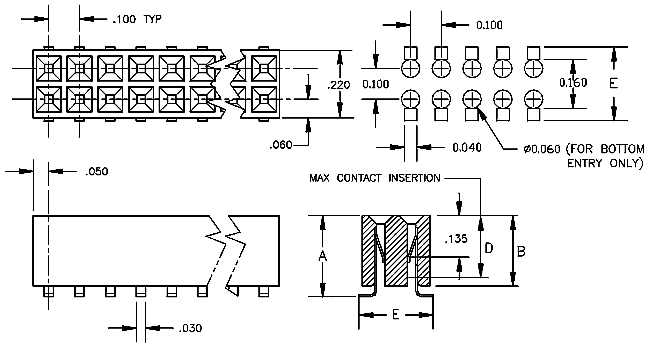

Package Outline Drawing
Technical Information:
Insertion/Extraction mated to .025 sq pin
Insertion - 185 grams / contact typ
Extraction - 102 grams / contact typ
Recommended Male Pin
.200 min .240 max
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
Max Insert Depth "D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1149-XXYY |
6.60
|
.260
|
5.72
|
.225
|
6.60
|
.260
|
6.10
|
.240
|
G2; T
|
2-80
|
| Technical Characteristics | |
| Contact Material | Contact: Stamped, Phosphor Bronze, single beam |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 185 grams (6.3oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 102 grams (3.6oz) (typ initial force per contact w/.025" sq pin) |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
