2.54mm Pitch Connectors
SINGLE ROW STRAIGHT, accepting .025" SQUARE PIN SOCKET

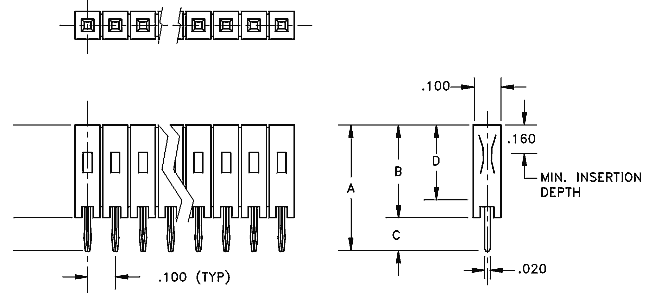

Package Outline Drawing
This series of breakaway 40 and 80 position socket
connectors feature high retention type contact in top insertion. The N1154
series and the N1155 series parts are top insertion connectors for board
interface where pluggability is required
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1154R-XXYY |
12.06
|
.455
|
8.50
|
.335
|
3.05
|
.120
|
7.62
|
.300
|
G2; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Contact: 3 sided Stamped,Phosphor Bronze |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 306 grams (10.8oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 153 grams (5.4oz) (typ initital force per contact w/.025" sq pin) |
| Plating | T = Tin - 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
