2.54mm Pitch Connectors
DOUBLE ROW STRAIGHT, accepting .025" SQUARE PIN, SOCKET

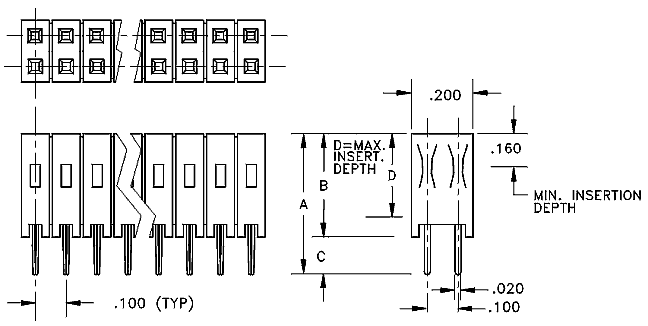

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1155-XXYY |
12.06
|
.455
|
8.50
|
.335
|
3.05
|
.120
|
7.62
|
.300
|
G2; T
|
4-80
|
| Technical Characteristics | |
| Contact Material | Contact: 3 sided Stamped,Phosphor Bronze |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 1 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 306 grams (10.8oz) (typ initial force per contact w/.025" sq pin) |
| Extraction Force | 153 grams (5.4oz) (typ initital force per contact w/.025" sq pin) |
| Plating | T = Tin - 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
