2.54mm Pitch Connectors
DOUBLE ROW STRAIGHT, LOW PROFILE, accepting .025" Square Pin, Screw Machine Socket

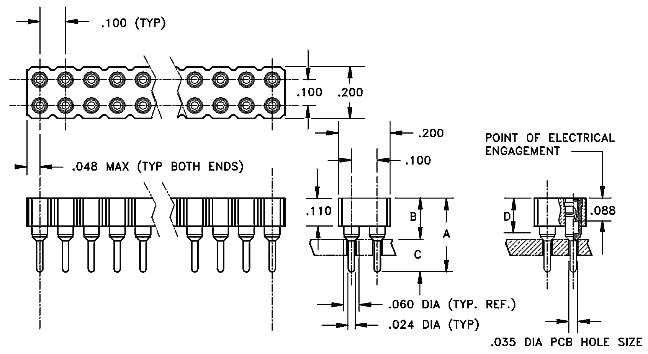

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1167M-XXYY |
7.39
|
.291
|
4.19
|
.165
|
3.20
|
.126
|
4.06
|
.160
|
G2; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#47] |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 200 grams (7.0oz) (typ force per w/.025" sq pin) 6 finger contact [#47] |
| Extraction Force | 88 grams (3.1oz) (typ initital per w/.025" sq pin) 6 finger contact [#47] |
| Plating | T = Tin - 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
