2.54mm Pitch Connectors
EXTENDER, DOUBLE ROW STRAIGHT, accepting .025" SQUARE PIN, SCREW MACHINE SOCKET

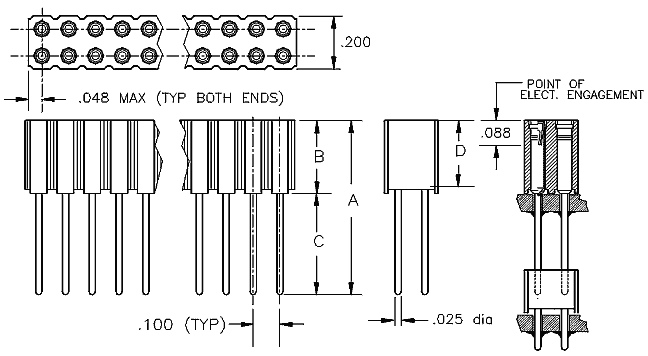

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth "D"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1172-XXYY |
18.29
|
.720
|
6.86
|
.270
|
11.43
|
.450
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1173-XXYY |
23.37
|
.920
|
6.86
|
.270
|
16.51
|
.650
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1174-XXYY |
18.29
|
.720
|
10.92
|
.430
|
7.37
|
.290
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1175-XXYY |
23.37
|
.920
|
10.92
|
.430
|
12.45
|
.490
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1177-XXYY |
23.37
|
.920
|
16.00
|
.630
|
7.37
|
.290
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1178-XXYY |
18.29
|
.720
|
16.00
|
.630
|
2.29
|
.090
|
5.79
|
.228
|
G2
|
4-80
|
| N1179-XXYY |
13.34
|
.525
|
10.92
|
.430
|
2.29
|
.090
|
5.79
|
.228
|
G2
|
4-80
|
| N1180-XXYY |
18.29
|
.720
|
13.46
|
.530
|
4.83
|
.190
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1182-XXYY |
23.37
|
.920
|
13.46
|
.530
|
9.91
|
.390
|
5.79
|
.228
|
G2; G1
|
4-80
|
| N1183-XXYY |
23.37
|
.920
|
18.54
|
.730
|
4.83
|
.190
|
5.79
|
.228
|
G2; G1
|
4-80
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#47] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force |
typ initial per: 194 grams (6.08oz) w/.025" rd pin & 230 grams (8.01oz) w/.025sq pin |
| Extraction Force | typ initital per: 122 grams (4.3oz) w/.025" rd pin & 92 grams (3.2oz) w/.025sq pin |
| Plating | G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
