2.54mm Pitch Connectors
DOUBLE ROW, STRACKTHRU and NON-STACKTHRU, SCREW MACHINE SOCKET with ROUND PINS

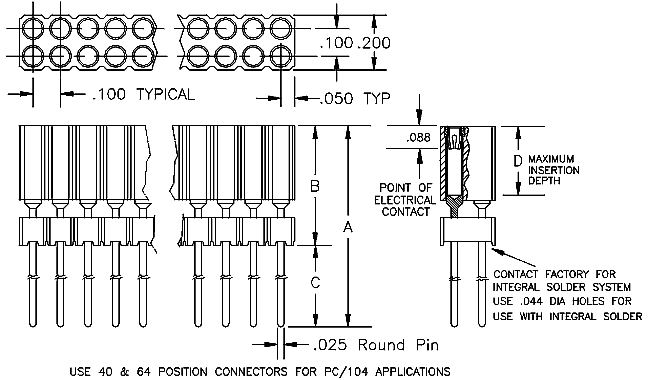

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth "D"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N1175P-XXYY |
23.37
|
.920
|
10.92
|
.430
|
12.45
|
.490
|
6.53
|
.257
|
G1
|
4-64
|
| N1179P-XXYY |
13.84
|
.540
|
10.92
|
.430
|
2.80
|
.110
|
6.53
|
.257
|
G2
|
4-64
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 finger BeCu [#47] |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Insertion Force |
typ initial per: 194 grams (6.08oz) w/.025" rd pin & 230 grams (8.01oz) w/.025sq pin |
| Extraction Force | typ initital per: 122 grams (4.3oz) w/.025" rd pin & 92 grams (3.2oz) w/.025sq pin |
| Plating | G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
