2.54mm Pitch Connectors
.025" SQUARE PIN, SADDLE MOUNT, DOUBLE ROW STRAIGHT SMD HEADER

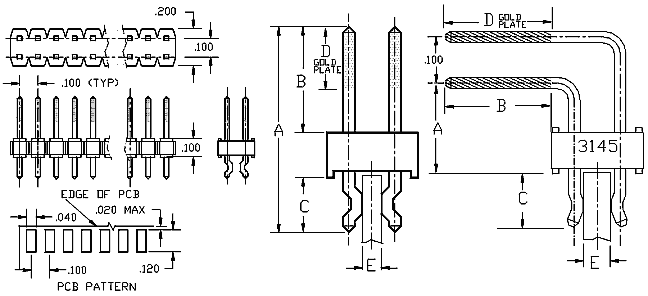

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
PCB Thickness
|
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N3140-XXYY |
1.19
|
.047
|
11.43
|
.450
|
5.97
|
.235
|
3.05
|
.120
|
5.84
|
.230
|
G2; G230; T
|
2-80
|
| N3143-XXYY |
1.57
|
.062
|
11.43
|
.450
|
5.97
|
.235
|
3.05
|
.12
|
5.84
|
.230
|
G2; G230; T
|
2-80
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
| G230 = Tin/30µ"Gold - 30µ"
(.76µ) gold over 50µ" (1.3µ) Ni at mating end
- balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
