2.54mm Pitch Connectors
.025" SQUARE PIN, LOW PROFILE, SINGLE ROW RIGHT ANGLE HEADER

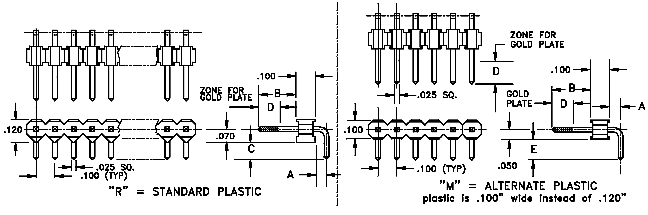

Package Outline Drawing
Characteristics
| Product Selection Guide | |||||||
| Part Number |
Bend
Distance from plastic "A" (mm) |
Dimension
above plastic "B" |
Dimension
Below Plastic "C" (STD) (mm) |
Dimension
Below Plastic "E" (ALT) (mm) |
Gold
Plating Zone |
Plating |
Number
of Ways "XX" |
| N4301R-XXYY |
1.52
|
5.84
|
2.29
|
2.79
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4304R-XXYY |
1.52
|
5.84
|
4.83
|
5.33
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4326R-XXYY |
1.52
|
5.84
|
7.37
|
7.87
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4321R-XXYY |
1.52
|
5.84
|
9.91
|
10.41
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4307R-XXYY |
1.52
|
5.84
|
12.45
|
12.95
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4319R-XXYY |
1.52
|
5.84
|
14.99
|
15.49
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4310R-XXYY |
1.52
|
5.84
|
17.53
|
18.03
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4320R-XXYY |
4.06
|
5.84
|
2.29
|
2.79
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4303R-XXYY |
4.06
|
5.84
|
4.83
|
5.33
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4323R-XXYY |
4.06
|
5.84
|
7.37
|
7.87
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4327R-XXYY |
4.06
|
5.84
|
9.91
|
10.41
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4309R-XXYY |
4.06
|
5.84
|
12.45
|
12.95
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4308R-XXYY |
4.06
|
5.84
|
14.99
|
15.49
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4305R-XXYY |
1.52
|
8.08
|
2.59
|
3.1
|
5.84
|
G1; G2; G230; T
|
2-40
|
| N4322R-XXYY |
1.52
|
3.30
|
2.16
|
2.67
|
5.84
|
G1; T
|
2-40
|
| N4325R-XXYY |
4.06
|
5.84
|
2.29
|
2.79
|
5.84
|
G1; T
|
2-40
|
| N4336R-XXYY |
1.52
|
8.08
|
5.13
|
5.64
|
5.84
|
G1; G2; G230; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.30µ) Ni | |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
|
G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
