2.54mm Pitch Connectors
.25" SQUARE PIN, HIGH PROFILE, SINGLE ROW RIGHT ANGLE HEADER

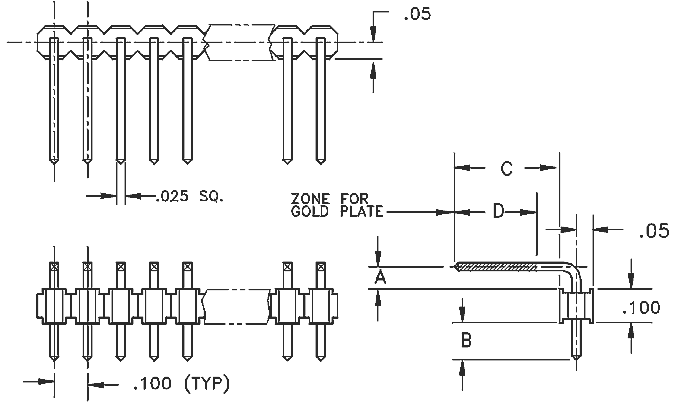

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
Bend Distance
From Plastic "A" |
Dimensions
Below "B" |
Pin Extension
From Plastic "C" |
Gold Dimension
On "G2" & "G2 30" Duplex Plate "D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N4330R-XXYY |
3.18
|
.125
|
4.57
|
.180
|
7.49
|
.295
|
5.84
|
.230
|
G1; G2; G230; T
|
2-40
|
| N4311R-XXYY |
1.52
|
.060
|
2.79
|
.110
|
5.84
|
.230
|
5.84
|
.230
|
G1; G2; G230; T
|
2-40
|
| N4329R-XXYY |
1.52
|
.060
|
5.33
|
.210
|
5.84
|
.230
|
5.84
|
.230
|
G1; G2; G230; T
|
2-40
|
| N4331R-XXYY |
1.52
|
.060
|
3.10
|
.122
|
8.08
|
.318
|
5.84
|
.230
|
G1; G2; G230; T
|
2-40
|
| N4332R-XXYY |
1.52
|
.060
|
3.56
|
.140
|
10.16
|
.400
|
7.87
|
.310
|
G1; G2; G230; T
|
2-40
|
| N4333R-XXYY |
1.52
|
.060
|
3.56
|
.140
|
12.70
|
.500
|
5.84
|
.230
|
G1; G2; G230; T
|
2-40
|
| N4334R-XXYY |
3.81
|
.150
|
3.56
|
.140
|
7.87
|
.310
|
N/A
|
N/A
|
G1; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G1 = Gold - 10µ" (.25µ) gold over 50µ" (1.30µ) Ni | |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
|
G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
