2.54mm Pitch Connectors
.025" SQUARE PIN, BOARD STACKING, SINGLE ROW RIGHT ANGLE HEADER

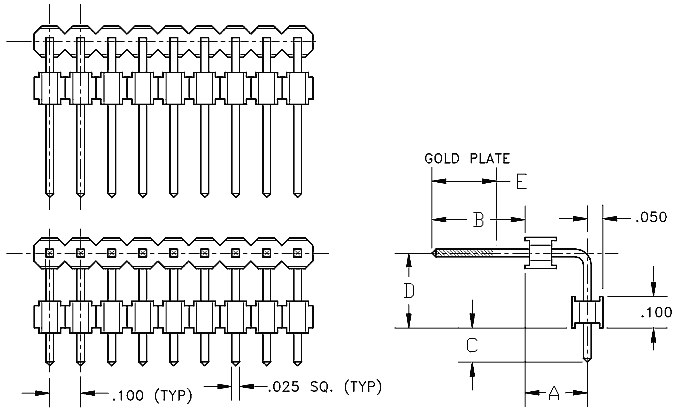

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N5602-XXYY |
4.06
|
.160
|
5.84
|
.230
|
3.94
|
.155
|
5.08
|
.200
|
5.83
|
.230
|
G2; T
|
2-40
|
| N5603-XXYY |
4.06
|
.160
|
5.84
|
.230
|
3.94
|
.155
|
5.08
|
.200
|
5.83
|
.230
|
G2; T
|
2-40
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
