2.54mm Pitch Connectors
.025" SQUARE PIN with .028" ROUND SOLDER TAILS, STRAIGHT HEADER (use .031" hole)

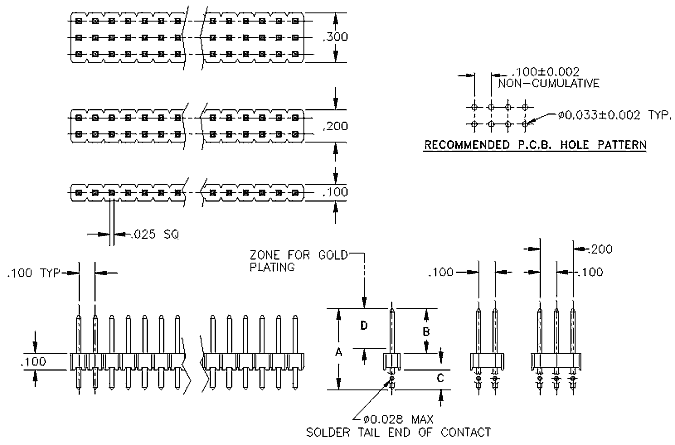

Package Outline Drawing
Designed for applications where the finished hole is
.030.
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N6901S-XXYY |
11.56
|
.455
|
5.97
|
.235
|
3.05
|
.120
|
5.84
|
.230
|
G2; T
|
2-40
|
| N6921S-XXYY |
11.56
|
.455
|
5.97
|
.235
|
3.05
|
.120
|
5.84
|
.230
|
G2; T
|
4-80
|
| N6941S-XXYY |
11.56
|
.455
|
5.97
|
.235
|
3.05
|
.120
|
5.84
|
.230
|
G2; T
|
3-120
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
