2.54mm Pitch Connectors
LCD EXTENDER, SINGLE ROW STRAIGHT, accepting .020" DIAMETER ROUND PIN, SCREW MACHINE SOCKET

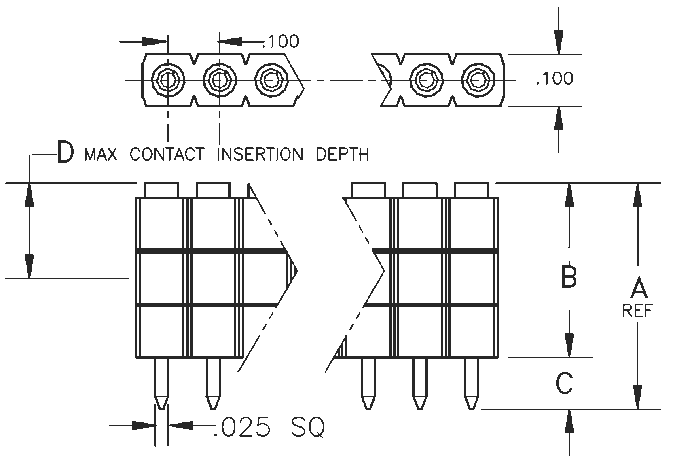

Package Outline Drawing
These socket extenders allow for a predetermined dimension
between PCB and membrane surface for LCDs. They can also be used as mating
receptacles for our 700X series and DS1 series.
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N7181-XXYY |
11.18
|
.440
|
8.47
|
.330
|
2.79
|
.110
|
4.32
|
.170
|
G2; T
|
2-36
|
| N7182-XXYY |
14.22
|
.560
|
10.9
|
.430
|
3.30
|
.130
|
4.32
|
.170
|
G2; T
|
2-36
|
| N7183-XXYY |
17.78
|
.700
|
13.46
|
.530
|
4.32
|
.170
|
4.32
|
.170
|
G2; T
|
2-36
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: BeCu spring |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 230 grams (8.1oz) (typ initial force per contact w/.016" round pin) [E] |
| Extraction Force | 115 grams (4.1oz) (typ initital force per contact w/.016" round pin) [E] |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
