2.54mm Pitch Connectors
DOUBLE ROW STRAIGHT, LOW PROFILE, accepting .020" DIAMETER ROUND PIN, SCREW MACHINE SOCKET

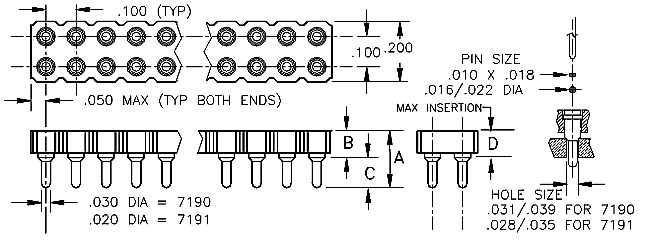

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
Max Insert Depth
"D" |
Plating
Options YY |
Number
of Positions XX |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N7190-XXYY |
4.83
|
.190
|
2.41
|
.095
|
2.41
|
.095
|
3.56
|
.140
|
G2
|
4-64
|
| N7191-XXYY |
7.37
|
.290
|
4.31
|
.170
|
3.10
|
.122
|
3.56
|
.140
|
G2
|
4-64
|
| Technical Characteristics | |
| Contact Material | Shell: Phosphor Bronze, Contact Clip: 6 or 4 finger BeCu [#22,30] |
| Insulation Material | Thermoplastic, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 125°C for 60 seconds |
| Insertion Force | 230 grams (8.1oz) (typ initial force per contact w/.020" round pin) [#30] |
| Extraction Force | 115 grams (4.1oz) (typ initital force per contact w/.020" round pin) [#30] |
| Plating | G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
