2.54mm Pitch Connectors
.025" SQUARE PIN, SINGLE ROW STRAIGHT SMD HEADER

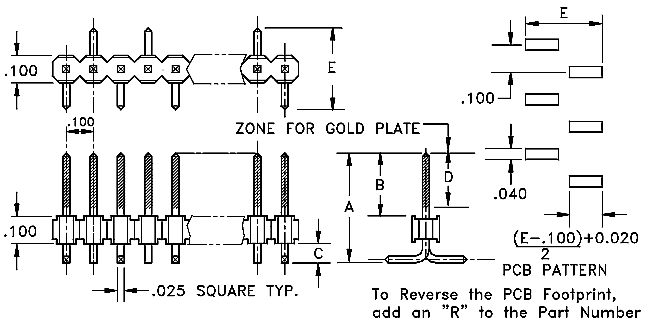

Package Outline Drawing
Other pin arrangements available. Please consult factory
NOTE: To reverse the foot pattern, add an "R" to the Base Part
Number.
Example: NHTSM3804R-XXYY
Characteristics
| Product Selection Guide | ||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"D"
|
"E"
|
Plating
Options YY |
Number
of Positions XX |
|||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| NHTSM3803-XXYY |
9.27
|
.365
|
6.22
|
.245
|
.508
|
.020
|
5.84
|
.230
|
5.97
|
.235
|
G2; G230; T
|
4-20
|
| NHTSM3804-XXYY |
11.18
|
.440
|
8.13
|
.320
|
5.08
|
.020
|
8.13
|
.320
|
5.72
|
.225
|
G2; G230; T
|
4-20
|
| NHTSM3801-XXYY |
9.14
|
.360
|
5.84
|
.230
|
.508
|
.020
|
5.84
|
.230
|
4.70
|
.185
|
G2; G230; T
|
4-20
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon 46, UL94V-O rated black |
| Heat Deflection | 260° @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
| G230 = Tin/30µ"Gold - 30µ"
(.76µ) gold over 50µ" (1.3µ) Ni at mating end
- balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
