Custom Pin Header
Thru Hole Custom Header
Features
- Design versatility - headers can be snapped/cut into any number of ways needed
- Low cost, quick delivery
- Single, double and where applicable, triple rows available
- Can be used in conjunction with top and bottom entry receptacles
- Board retention features available
- Variety of pitches available (1.0mm, 1.27mm, 2.0mm, 2.54mm + others)
- Tin-lead, gold flash or duplex plating options
- May eliminate the need for additional board spacers
- Parallel PC board stacking with numerous stack heights
Package Outline Drawings
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Characteristics
| Material | |
| Housing/Insulator |
Black terhmoplatic, 94V-0 rated, high temperature
compatible
|
| Posts/Pin |
Brass or phosphor bronze
|
| Plating Specifications | |
| Gold Flash |
Tin-lead or duplex plating (Gold plated on
contact area and Tin plated on solder tail). |
| Performance Characteristics | |
| Inserting Force |
12 lb Max |
| Retention Force |
25 lb Min
|
| Electrical | |
| Current Rating |
3 Amps
|
| Insulation Resistance |
50 MW min initial
|
| Dielectric withstanding Voltage |
750 RMS at sea level
|
| Environmental | |
| Operating Temperature |
-65°C ~+105°C
|

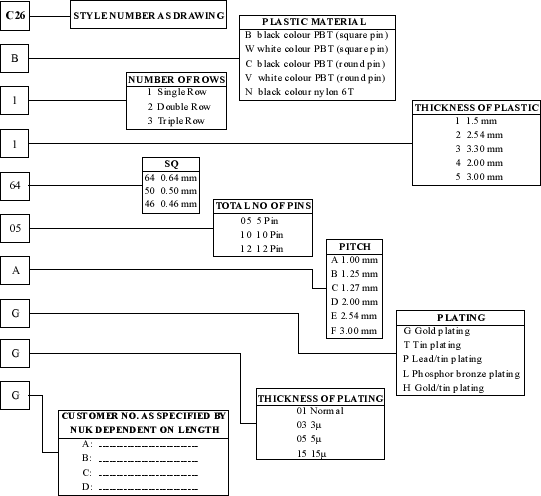

Part Numbering System
