2.54mm Pitch Connectors

HE13/HE14 SOCKETS & SIMILAR

Single Row 8.5mm Height



	Part Number	Plating	Number of Contacts xx
	3Y-10-111-XX-1	Tin Plated	02 to 40
	3Y-10-131-XX-1	Selective Gold Plated	02 to 40

Double Row 8.5mm Height


	Part Number	Plating	Number of Contacts xx
	3Y-20-111-XX-1	Tin Plated	04 to 80
	3Y-20-131-XX-1	Selective Gold Plated	04 to 80

Double Row Dual Entry 8.5mm Height



	Part Number	Plating	Number of Contacts xx
	3Y-20-311-XX-1	Tin Plated	04 to 80
	3Y-20-331-XX-1	Selective Gold Plated	04 to 80

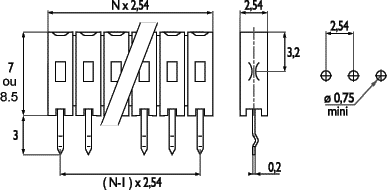

Single Row 7mm Height



	Part Number	Plating	Number of Contacts xx
	7Y-10-111-XX-1	Tin Plated	04 to 40
	7Y-10-131-XX-1	Selective Gold Plated	04 to 40

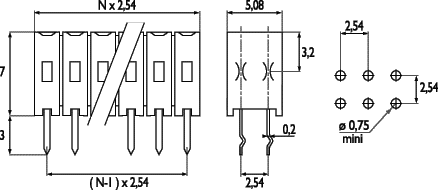

Double Row 7mm Height



	Part Number	Plating	Number of Contacts xx
	7Y-20-111-XX-1	Tin Plated	04 to 80
	7Y-20-131-XX-1	Selective Gold Plated	04 to 80

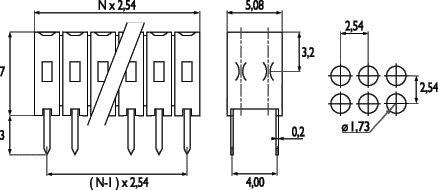

Double Row Dual Entry 7mm Height



	Part Number	Plating	Number of Contacts xx
	7Y-20-011-XX-1	Tin Plated	04 to 80
	7Y-20-031-XX-1	Selective Gold Plated	04 to 80

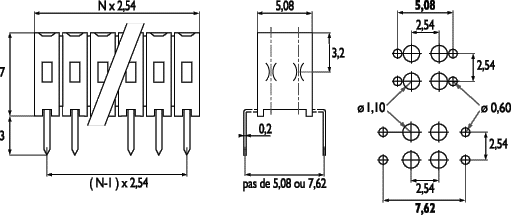

Double Row Dual Entry 7mm Height



	Part Number	Plating	Number of Contacts xx	Pitch
	7Y-20-211-XX-1	Tin Plated	04 to 80	5.08
	7Y-20-231-XX-1	Selective Gold Plated	04 to 80	5.08
	7Y-20-311-XX-1	Tin Plated	04 to 80	7.62
	7Y-20-331-XX-1	Selective Gold Plated	04 to 80	7.62

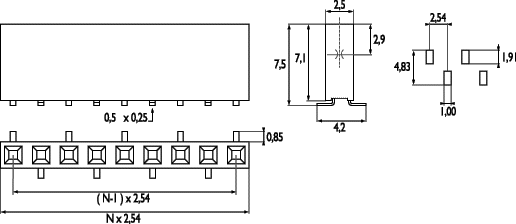

SMD Single Row 7.1mm Height



	Part Number	Plating	Number of Contacts xx
	7S-10-011-XX-1	Tin Plated	03 to 40
	7S-10-031-XX-1	Selective Gold Plated	03 to 40

SMD Double Row 7mm Height



	Part Number	Plating	Number of Contacts xx
	7S-20-011-XX-1	Tin Plated	04 to 80
	7S-20-031-XX-1	Selective Gold Plated	04 to 80
