Boxed Headers
2.54mm PITCH, .025" SQUARE PIN, BOX,
SMT HEADER for IDC CONNECTORS

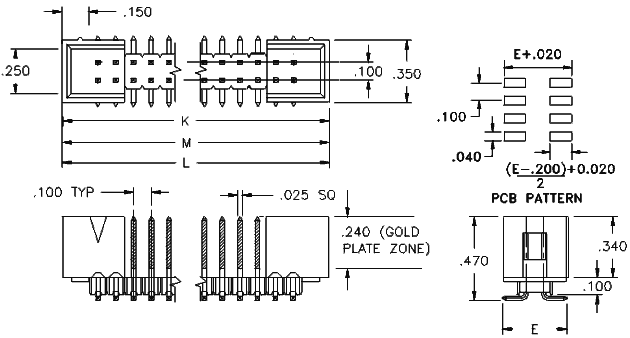

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"E"
|
"M"
|
"L"
|
"K"
|
Plating
Options YY |
Number
of Positions |
|||||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N3185-XXYY |
17.78
|
.70
|
20.32
|
.80
|
10.16
|
.40
|
10.26
|
.404
|
17.78
|
.70
|
20.32 |
.80
|
10.16
|
.40
|
T,G2
|
10
|
| N3185-XXYY |
25.40
|
1.0
|
27.94
|
1.1
|
17.78 |
.70
|
10.26
|
.404
|
25.40
|
1.0
|
27.94
|
1.10
|
17.78
|
.70
|
T,G2
|
16
|
|
N3185-XXYY |
30.48
|
1.2
|
33.02
|
1.3
|
22.86
|
.90
|
10.26
|
.404
|
30.48
|
1.2
|
33.02
|
1.3
|
22.86
|
.90
|
T,G2
|
20
|
| N3185-XXYY |
38.10
|
1.5
|
40.64
|
1.6
|
30.48
|
1.2
|
10.26
|
.404
|
38.10
|
1.5
|
40.64
|
1.6
|
30.48
|
1.2
|
T,G2
|
26
|
| N3185-XXYY |
48.26
|
1.9
|
50.80
|
2.0
|
40.64
|
1.6
|
10.26
|
.404
|
48.26
|
1.90
|
50.80
|
2.0
|
40.64
|
1.6
|
T,G2
|
34
|
| N3185-XXYY |
55.88
|
2.2
|
58.42
|
2.3
|
48.26
|
1.9
|
10.26
|
.404
|
55.88
|
2.2
|
58.42
|
2.3
|
48.26
|
1.9
|
T,G2
|
40
|
| N3185-XXYY |
68.58
|
2.7
|
71.12
|
2.8
|
71.12
|
2.8
|
10.26
|
.404
|
68.58
|
2.7
|
71.12
|
2.8
|
60.96
|
2.4
|
T,G2
|
50
|
|
N3185-XXYY |
81.28
|
3.2
|
83.82
|
3.3
|
73.66
|
2.9
|
10.26
|
.404
|
81.28
|
3.2
|
83.82
|
3.3
|
73.66
|
2.9
|
T,G2
|
60
|
| N3185-XXYY |
86.36
|
3.4
|
88.90
|
3.5
|
78.74
|
3.1
|
10.26
|
.404
|
86.36
|
3.4
|
88.9
|
3.5
|
78.74
|
3.1
|
T,G2
|
64
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon or Polyester, UL94V-O rated black |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
