Boxed Headers
2.54mm PITCH, .025" SQUARE PIN, BOX,
SMT HEADER for BOARD to BOARD STACKING

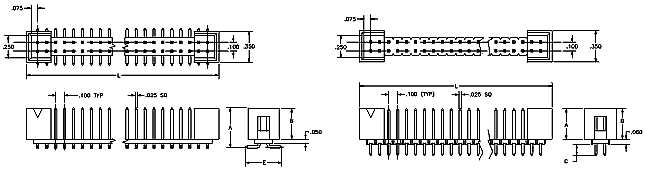

Package Outline Drawing
Characteristics
| Product Selection Guide | ||||||||||
| Part Number |
"A"
|
"B"
|
"C"
|
"E"
|
Plating
Options YY |
Number
of Positions |
||||
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
|||
| N3187-XXYY |
11.43
|
.450
|
8.64 |
.340
|
~
|
~
|
10.26
|
.404
|
T,G2
|
4
|
| N3703-XXYY |
10.16
|
.400
|
8.64
|
.340
|
3.18 |
.125
|
~
|
~
|
T,G2
|
4
|
| Technical Characteristics | |
| Contact Material | Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends |
| Insulation Material | Glass Filled Nylon or Polyester, UL94V-O rated black |
| Heat Deflection | 260°C @ 264 PSI per ASTM D648 |
| Insulation Resistance | 5,000 Meg Ohm @ 500VDC |
| Current Rating | 3 amp continuous @ 100VDC/contact |
| Max Processing Temp | 250°C for 60 seconds |
| Plating | T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
| G2 = Tin/Gold - 10µ" (.25µ)
gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni |
|
