Boxed Headers

BOARD STACKING DOUBLE ROW STRAIGHT HEADER

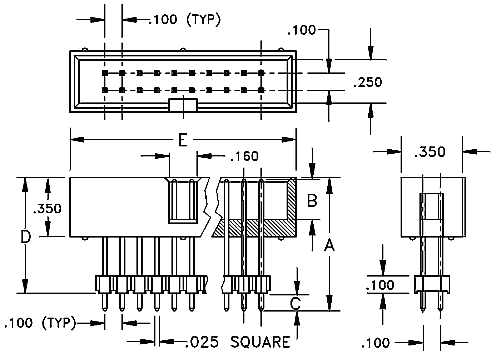

Package Outline Drawing

Characteristics

Product Selection Guide
Part Number
"A"
"B"
"C"
"D"
Plating
Options
YY
mm
Inch
mm
Inch
mm
Inch
mm
Inch
NPDH2-350/520/115-XXYY
16.13
.635
5.97
.235
2.92
.115
13.21
.520
T,G2,G230
NPDH2-350/620/115-XXYY
18.67
.735
5.97
.235
2.92
.115
15.74
.620
T,G2,G230

NPDH2-350/720/115-XXYY
21.21
.835
5.97
.235
2.92
.115
18.28
.720
T,G2,G230
NPDH2-350/820/115-XXYY
23.62
.935
5.97
.235
2.92
.115
20.82
.820
T,G2,G230
NPDH2-350/920/115-XXYY
26.29
1.035
5.97
.235
2.92
.115
23.36
.920
T,G2,G230
NPDH2-350/1020/115-XXYY
28.83
1.135
5.97
.235
2.92
.115
25.80
1.020
T,G2,G230
NPDH2-350/1120/115-XXYY
31.37
1.235
5.97
.235
2.92
.115
28.34
1.120
T,G2,G230

NPDH2-350/1220/115-XXYY
33.90
1.335
5.97
.235
2.92
.115
30.88
1.220
T,G2,G230
NPDH2-350/1320/115-XXYY
36.45
1.435
5.97
.235
2.92
.115
33.42
1.320
T,G2,G230

Each part is availble in the following number of ways/widths:

No of Ways
"E"
mm
Inch
10
20.32
.800
16
27.94
1.10
20
33.02
1.30
26
40.64
1.60
34
50.80
2.00
40
58.42
2.30
50
71.12
2.80
60
83.82
3.30
64
88.90
3.50

Technical Characteristics
Contact Material Pin: Phosphor Bronze, 0.25" sq pin, burr free both ends
Insulation Material Glass Filled Nylon or Polyester, UL94V-O rated black
Heat Deflection 125° @ 264 PSI per ASTM D648
Insulation Resistance 5,000 Meg Ohm @ 500VDC
Current Rating 3 amp continuous @ 100VDC/contact
Max Processing Temp 125°C for 60 seconds
Plating T = Tin 150µ" (3.8µ) bright tin over 50µ" (1.3µ) Ni
G2 = Tin/Gold - 10µ" (.25µ) gold over 50µ" (1.3µ) Ni at
mating end - balance of pin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni
G230 = Tin/30µ"Gold - 30µ" (.76µ) gold over 50µ" (1.3µ) Ni at mating end - balance of pin 150µ" (3.8µ) bright tin over
50µ" (1.3µ) Ni
