MALE STRAIGHT PCB 101/201 SERIES

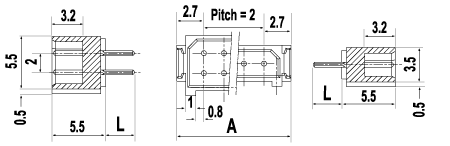

Package Outline Drawing

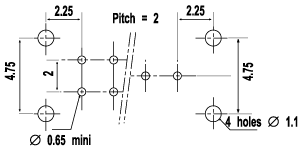

PCB Layout
Dimensions: mm
L
|
Type u
|
3 mm
|
Y
|
4.5 mm
|
YL
|
5.3 mm
|
YM
|
9.3 mm
|
YX
|
XX : Number of contacts
u : Contact type (Y, YL, YM, YX)
For board to board spacing
and pin numbering select here
No of contacts
Single Row |
02
|
03
|
04
|
05
|
06
|
07
|
08
|
09
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
No of contacts
Two Row |
04
|
06
|
08
|
10
|
12
|
14
|
16
|
18
|
20
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
36
|
38
|
40
|
42
|
44
|
46
|
48
|
50
|
A |
7.6
|
9.6
|
11.6
|
13.6
|
15.6
|
17.6
|
19.6
|
21.6
|
23.6
|
25.6
|
27.6
|
29.6
|
31.6
|
33.6
|
35.6
|
37.6
|
39.6
|
41.6
|
43.6
|
45.6
|
47.6
|
49.6
|
51.6
|
53.6
|
A (Latch Fitted) |
8.1
|
10.1
|
12.1
|
14.1
|
16.1
|
18.1
|
20.1
|
22.1
|
24.1
|
26.1
|
28.1
|
30.1.
|
32.1
|
34.1
|
36.1
|
38.1
|
40.1
|
42.1
|
44.1
|
46.1
|
48.1
|
50.1
|
52.1
|
54.1
|
Characteristics |
All contacts |
3 A max @ 25ºC
|
2.2 A max @ 85°C |
Working voltage (sea level) |
240V DC |
Proof voltage |
360V DC |
Contact resistance (initially) |
max 10mW |
Insulation resistance |
1 000 M W min
|
Mechanical operations |
500 cycles min |
Contact insertion and withdrawal force |
2 N max, 0.2 min |
Contact retention in insulator |
10 N min |
Environmental/Materials |
Insulator |
Fibreglass filled thermoplastic UL94VO |
Contacts |
Male: Tin plated copper alloy, hard acid
gold plated |
Female:
|
Gold or tin-plated copper alloy socket
Gold plated berylum copper inner contact
|
Fixing Hardware |
Latch: Beryllium copper alloy socket |
Jackscrew: stainless steel CMM 300 series |
Operating Temperature |
from -55°C to + 125°C (IEC 68-1) |
from -67°F to 257°F |
Complies with vapour phase and infrared
techniques |
Vibration severity |
0.75mm, 10 g RMS 6 hours long random with
superimposed sinusoid. No imtermittancies measured when using an H.S.L.I
(High Speed Logic Interrupt) detector with a trip threshold of 2 ns |
Shock severity |
100 g for 6 ms |
Resistance |
HcFc 141 bMGX (ATOCHEM) solvent |
Part Numbering System
|
PCB
|
Nicomatic
|
BS
|
Series |
Single row |
~
|
1
|
~
|
Two Row |
~
|
2
|
~
|
BS Style |
Female Crimp |
~
|
~
|
B5740
|
Female PC |
~
|
~
|
B5741
|
Male all |
~
|
~
|
B5743
|
Contact Type |
Male |
~
|
1
|
M
|
Female |
~
|
2
|
F
|
Termination type |
90° pc (male only) |
1.6
|
V
|
L
|
90° pc (male only) |
3.2
|
VL
|
K
|
Straight pc (male and female) |
1.6
|
Y
|
T
|
Straight pc (male and female) |
3.2
|
YL
|
~
|
Straight pc (male only) |
4.3
|
YM
|
Y
|
Straight pc (male only) |
8.3
|
YX
|
X
|
Straight pc (female only) |
0.5
|
YC
|
N
|
SMT straight (male and female) |
~
|
T
|
S
|
SMT 90 |
~
|
R
|
~
|
Crimp 24-28 AWG (male and female) |
~
|
S
|
C
|
Crimp 24-28 AWG (male and female) |
~
|
C
|
D
|
Variant |
Latches fitted (male only) |
~
|
L
|
1 or 3
|
No latches |
~
|
(leave blank)
|
0 or 2
|

|
