| CMM Micro-Connector |
 |
FEMALE STRAIGHT PCB 102/202

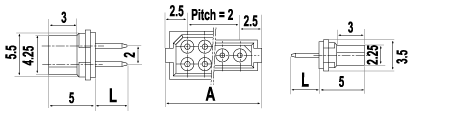

Package Outline Drawing
Dimensions: mm
|
L
|
Type u
|
|
3 mm
|
Y
|
|
4.5 mm
|
YL
|
|
0.5 mm
|
YC
|
XX : Number of contacts
u : Contact type (Y, YL, YC)
For board to board spacing and pin numbering select here
| No of contacts Single Row |
02
|
03
|
04
|
05
|
06
|
07
|
08
|
09
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
| No of contacts Two Row |
04
|
06
|
08
|
10
|
12
|
14
|
16
|
18
|
20
|
22
|
24
|
26
|
28
|
30
|
32
|
34
|
36
|
38
|
40
|
42
|
44
|
46
|
48
|
50
|
| A |
7.3
|
9.3
|
11.3
|
13.3
|
15.3
|
17.3
|
19.3
|
21.3
|
23.3
|
25.3
|
27.3
|
29.3
|
31.3
|
33.3
|
35.3
|
37.3
|
39.3
|
41.3
|
43.3
|
45.3
|
47.3
|
49.3
|
51.3
|
53.3
|
| Characteristics | ||
| All contacts |
3 A max @ 25ºC |
|
| 2.2 A max @ 85°C | ||
| Working voltage (sea level) | 240V DC | |
| Proof voltage | 360V DC | |
| Contact resistance (initially) | max 10mW | |
| Insulation resistance |
1 000 M W min |
|
| Mechanical operations | 500 cycles min | |
| Contact insertion and withdrawal force | 2 N max, 0.2 min | |
| Contact retention in insulator | 10 N min | |
| Environmental/Materials | ||
| Insulator | Fibreglass filled thermoplastic UL94VO | |
| Contacts | Male: Tin plated copper alloy, hard acid gold plated | |
|
Female: |
Gold or tin-plated copper alloy socket |
|
| Fixing Hardware | Latch: Beryllium copper alloy socket | |
| Jackscrew: stainless steel CMM 300 series | ||
| Operating Temperature | from -55°C to + 125°C (IEC 68-1) | |
| from -67°F to 257°F | ||
| Complies with vapour phase and infrared techniques | ||
| Vibration severity | 0.75mm, 10 g RMS 6 hours long random with superimposed sinusoid. No imtermittancies measured when using an H.S.L.I (High Speed Logic Interrupt) detector with a trip threshold of 2 ns | |
| Shock severity | 100 g for 6 ms | |
| Resistance | HcFc 141 bMGX (ATOCHEM) solvent | |
Part Numbering System
|
PCB
|
Nicomatic
|
BS
|
|
| Series | |||
| Single row |
~
|
1
|
~
|
| Two Row |
~
|
2
|
~
|
| BS Style | |||
| Female Crimp |
~
|
~
|
B5740
|
| Female PC |
~
|
~
|
B5741
|
| Male all |
~
|
~
|
B5743
|
| Contact Type | |||
| Male |
~
|
1
|
M
|
| Female |
~
|
2
|
F
|
| Termination type | |||
| 90° pc (male only) |
1.6
|
V
|
L
|
| 90° pc (male only) |
3.2
|
VL
|
K
|
| Straight pc (male and female) |
1.6
|
Y
|
T
|
| Straight pc (male and female) |
3.2
|
YL
|
~
|
| Straight pc (male only) |
4.3
|
YM
|
Y
|
| Straight pc (male only) |
8.3
|
YX
|
X
|
| Straight pc (female only) |
0.5
|
YC
|
N
|
| SMT straight (male and female) |
~
|
T
|
S
|
| SMT 90 |
~
|
R
|
~
|
| Crimp 24-28 AWG (male and female) |
~
|
S
|
C
|
| Crimp 24-28 AWG (male and female) |
~
|
C
|
D
|
| Variant | |||
| Latches fitted (male only) |
~
|
L
|
1 or 3
|
| No latches |
~
|
(leave blank)
|
0 or 2
|
