| CMM Micro-Connector |
 |
FEMALE STRAIGHT PCB 222 SERIES

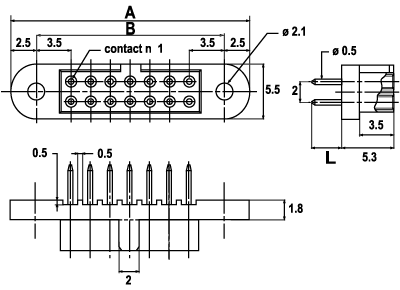

Package Outline Drawing

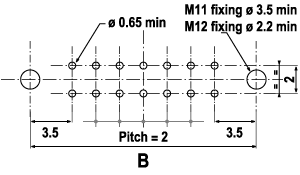

PCB Layout
Dimensions : mm
|
Contactl
|
Length
|
|
Y
|
3mm
|
|
YL
|
4.5mm
|
| Product Selection Guide | |||
| Part Number |
No of Contacts
|
A
|
B
|
| 222l06 Mxx |
06
|
16
|
11
|
| 222l10 Mxx |
10
|
20
|
15
|
| 222l14 Mxx |
14
|
24
|
19
|
| 222l20 Mxx |
20
|
30
|
25
|
| 222l26 Mxx |
26
|
36
|
31
|
| 222l34 Mxx |
34
|
44
|
39
|
| 222l42 Mxx |
42
|
52
|
47
|
| 222l50 Mxx |
50
|
60
|
55
|
xx fixing select here for more information
| Characteristics | ||
| All contacts |
3 A max @ 25ºC |
|
| 2.2 A max @ 85°C | ||
| Working voltage (sea level) | 240V DC | |
| Proof voltage | 360V DC | |
| Contact resistance (initially) | max 10mW | |
| Insulation resistance |
1 000 M W min |
|
| Mechanical operations | 500 cycles min | |
| Contact insertion and withdrawal force | 2 N max, 0.2 min | |
| Contact retention in insulator | 10 N min | |
| Environmental/Materials | ||
| Insulator | Fibreglass filled thermoplastic UL94VO | |
| Contacts | Male: Tin plated copper alloy, hard acid gold plated | |
|
Female: |
Gold or tin-plated copper alloy socket |
|
| Fixing Hardware | Latch: Beryllium copper alloy socket | |
| Jackscrew: stainless steel | ||
| Operating Temperature | from -55°C to + 125°C (IEC 68-1) | |
| from -67°F to 257°F | ||
| Complies with vapour phase and infrared techniques | ||
| Vibration severity | 0.75mm, 10 g RMS 6 hours long random with superimposed sinusoid. No imtermittancies measured when using an H.S.L.I (High Speed Logic Interrupt) detector with a trip threshold of 2 ns | |
| Shock severity | 100 g for 6 ms | |
| Resistance | HcFc 141 bMGX (ATOCHEM) solvent | |
