CMM Micro-Connector

MALE 90° PCB 301V SERIES

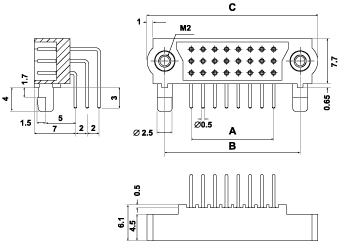

Package Outline Drawing

Dimensions : mm

XX: Number of contacts
n: Fixing (select here for details)

Part Number
No of Contacts
A
B
C
301V 27nnn
27
16
25
31
301V 36nnn
36
22
31
37
301V 51nnn
51
32
41
47
301V 63nnn
63
40
49
55
301V 78nnn
78
50
59
65

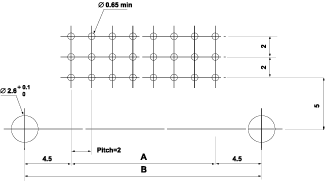

PCB Layout



Characteristics
All contacts

3 A max @ 25ºC
2.2 A max @ 85°C
Working voltage (sea level) 240V DC
Proof voltage 360V DC
Contact resistance (initially) max 10mW
Insulation resistance

1 000 M W min
Mechanical operations 500 cycles min
Contact insertion and withdrawal force 2 N max, 0.2 min
Contact retention in insulator 10 N min

Environmental/Materials
Insulator Fibreglass filled thermoplastic UL94VO
Contacts Male: Tin plated copper alloy, hard acid gold plated

Female:

Gold or tin-plated copper alloy socket
Gold plated berylum copper inner contact
Fixing Hardware Latch: Beryllium copper alloy socket
Jackscrew: stainless steel CMM 300 series
Operating Temperature from -55°C to + 125°C (IEC 68-1)
from -67°F to 257°F
Complies with vapour phase and infrared techniques
Vibration severity 0.75mm, 10 g RMS 6 hours long random with superimposed sinusoid. No imtermittancies measured when using an H.S.L.I (High Speed Logic Interrupt) detector with a trip threshold of 2 ns
Shock severity 100 g for 6 ms
Resistance HcFc 141 bMGX (ATOCHEM) solvent

Part Numbering System




PCB
Nicomatic
Series
Three rows
~
3
Contact Type
Male
~
1
Female
~
2
Number of contacts
~
18 up to 96
Termination type
90° pc (male only)
1.6
V
90° pc (male only)
3.2
VL
Straight pc (male and female)
1.6
Y
Straight pc (male and female)
3.2
YL
Crimp 24-28 AWG (male and female)
~
S
Crimp 24-28 AWG (male and female)
~
C
Fixings
Jack Screws
~
select here for details
Marking
Standard
~
leave blank
Reverse
~
M
